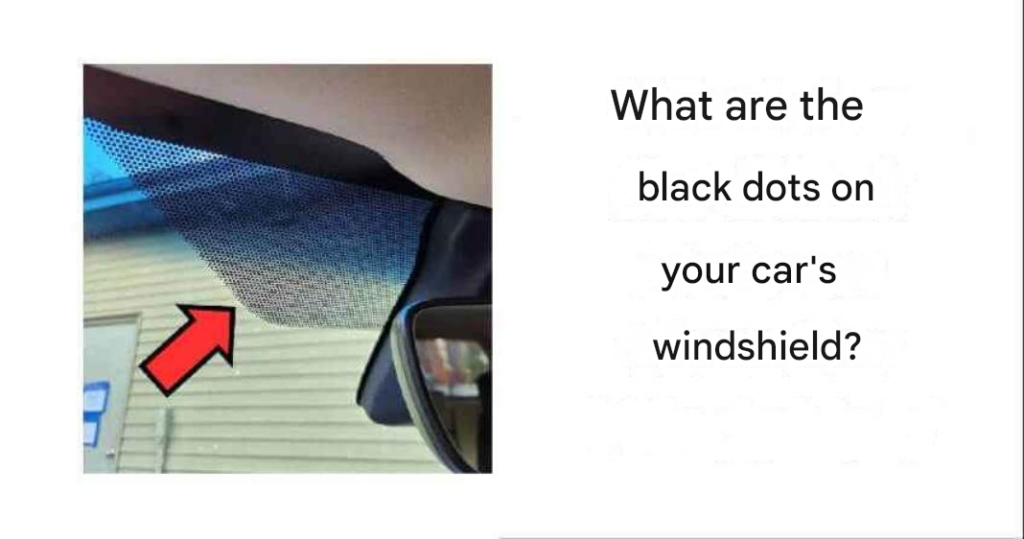

The pattern may look decorative, but it is part of an important windshield feature known as the ceramic frit. It helps protect the adhesive that holds the glass in place, hides the installation area, creates a smoother transition between dark and clear glass, and may reduce glare behind the rearview mirror.
The dots themselves do not make the windshield stronger. Instead, they support the bonding system and design of a windshield that can play an important role in vehicle safety.
What Is Windshield Frit?
Frit is a durable ceramic enamel applied to the windshield during manufacturing.
ADVERTISEMENT
The enamel is screen-printed onto the glass and fired at high temperatures, which bonds it permanently to the surface. That is why the black border cannot normally be removed like paint, tint, or a decal.
The frit usually consists of two visible parts:
- A solid black band around the windshield’s perimeter
- A fading dot pattern between the black band and the clear glass
Although people often call the entire feature “the black dots,” the solid border performs some of its most important functions.
It Protects the Windshield Adhesive
Modern windshields are commonly attached to the vehicle with a strong urethane adhesive.
Ultraviolet sunlight can gradually weaken some adhesive materials. The solid black frit band blocks light from reaching much of the bonded area, helping protect the adhesive from long-term UV exposure.
This matters because the adhesive does more than prevent rain from entering the cabin. It helps keep the windshield securely attached to the vehicle.
A properly bonded windshield may also contribute to the vehicle’s structural performance during a rollover and support the operation of the passenger-side airbag in vehicles where the airbag deploys against the glass.
The frit does not provide that support by itself. Its role is to protect and conceal the area where the glass is bonded to the car.
It Helps Create a Reliable Bond
The ceramic-coated area can also provide a suitable surface for the primers and adhesives used during windshield installation.
The exact installation system varies by vehicle and adhesive manufacturer. Professional installers must follow the required preparation, primer, adhesive, and curing procedures.
This is one reason windshield replacement involves more than simply placing a new piece of glass in the opening.
If the adhesive is applied incorrectly, contaminated, or not given enough time to cure, the new windshield may not perform as designed.
Why the Black Dots Get Smaller
The fading pattern is known as a dot matrix or halftone pattern.
Without it, the windshield would have a sharp visual line between the solid black border and the transparent glass. The gradually shrinking dots create a smoother, more finished transition.
The pattern can also help manage the difference between the dark frit area and the clear glass as the windshield is manufactured and exposed to heat.
Black enamel absorbs more heat than clear glass. A gradual transition may help reduce visible optical distortion near the edge and avoid an abrupt temperature change across the surface.
The exact pattern is chosen by the glass and vehicle manufacturers, so the size, spacing, and shape of the dots can vary.
